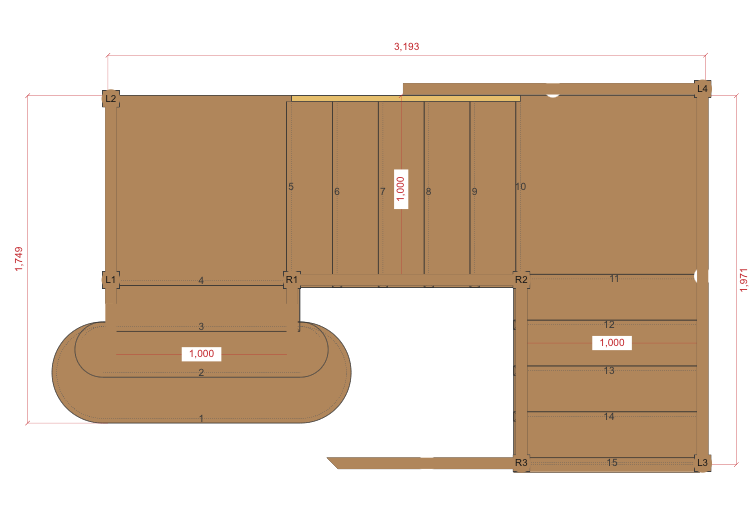

Full Staircase Layout
Riser count, rise, going, pitch, staircase width, overall dimensions and direction of travel, brought together in one dimensioned layout.
Staircase design service
Staircase Design
& Drawings
£150 + VAT per staircase
Remote staircase design anywhere in the UK. Site measuring available across Kent and London.
You send us the space and measurements.
We work out the staircase.
Send us your measurements, photographs and project details and we’ll work out the staircase geometry and provide a detailed PDF drawing pack for you to use with your builder, carpenter or staircase manufacturer.
- Detailed 2D drawings
- Regulation-aware geometry
- One revision included
- Available UK-wide
What you receive
The detail your project needs
Clear drawings and practical staircase expertise, ready to discuss with the people building your project.
Winders and Turns
Layouts for 3-winders, 6-winders and landing arrangements, worked out around the available space.

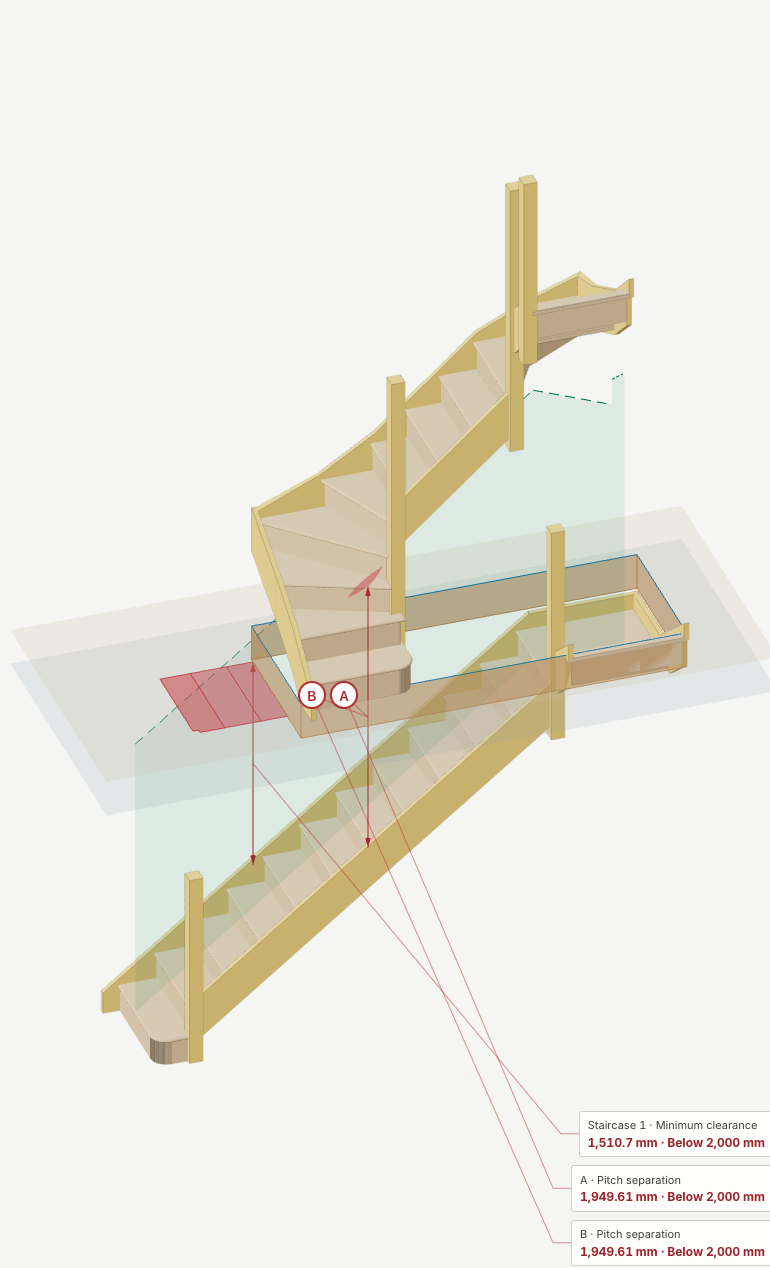

Headroom Checks
Relevant headroom checks where sufficient opening, floor thickness and project information has been supplied.
How it works
From your measurements to a clear design
Send Your Details
Send measurements, photographs, sketches or architect drawings. Tell us what you are planning and what you already know.
We Design The Staircase
We work out the geometry and find an appropriate layout for the available space. You do not need to configure the staircase yourself.
Receive Your Drawings
Receive your PDF drawing pack and use it with your chosen builder, carpenter or staircase manufacturer.
One clear package
Remote Staircase Design
£150 + VAT per staircase
- Dimensioned staircase drawing
- Rise, going and pitch calculations
- Staircase width and overall footprint
- Winder or landing layout where required
- Relevant headroom information where possible
- PDF drawing pack
- One reasonable revision

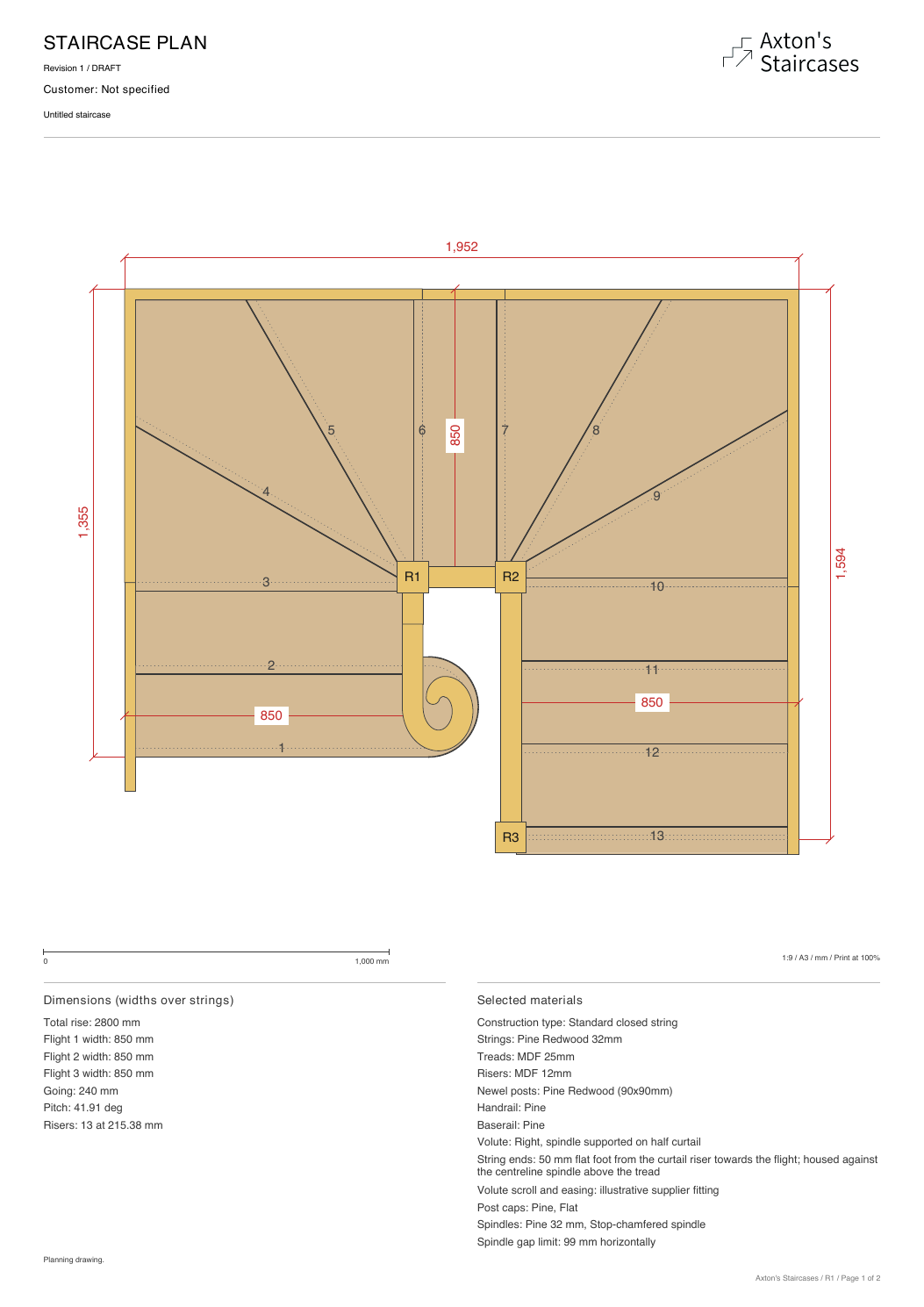

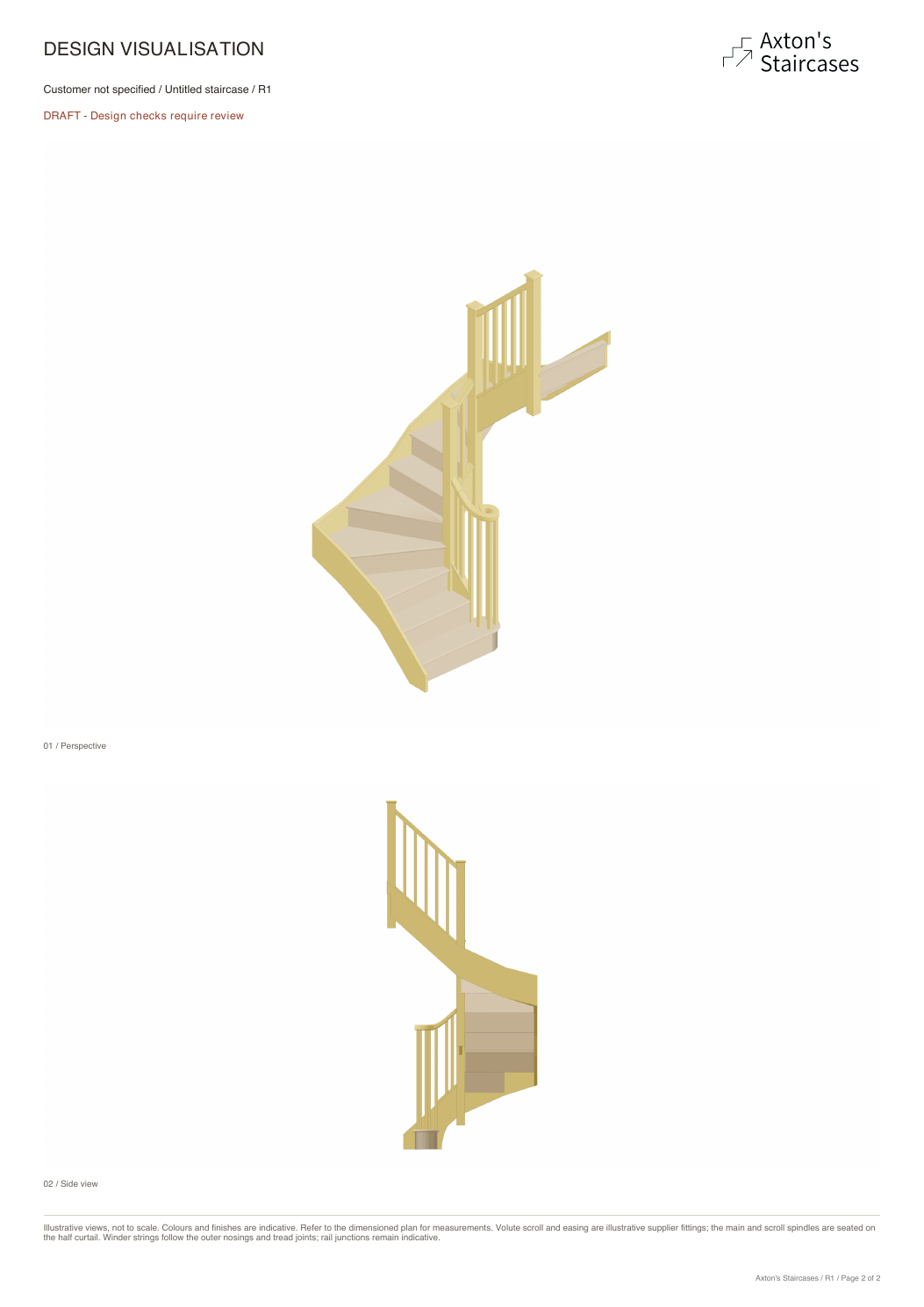

Two pages from an example draft: a dimensioned plan and design visualisations. Design checks on this sample are still marked for review.
Independent design
Already have a builder or staircase supplier?
You don’t have to buy the staircase from us.
The design pack is yours to use. Take it to your builder, carpenter or preferred staircase manufacturer, or ask Axton’s Staircases to quote for supply and installation afterwards.
Loft conversions
Loft conversion staircase design
The staircase is often the hardest part of a loft conversion to get right. It has to land on the existing landing, clear the roof slope and fit around rooms that are already there, while still meeting Building Regulations.
Get the staircase worked out before the floor is opened up. Your drawing shows the stairwell opening the staircase actually needs, so your builder knows exactly where the trimmers go before a single joist is cut. Changing a drawing costs far less than changing a stairwell.
Send us your loft details →Awkward spaces
Staircases for spaces that weren’t built for one
Barn conversions, basements, mezzanines, extensions, flats split over two floors, and older houses where the stairs need to move. When the space comes first and the staircase comes second, the layout has to work around what’s already there.
If it can’t be done, we’ll tell you why and what would need to change to make it work.
We work out
- The steepest pitch the regulations allow, and the most comfortable pitch the space can take
- Winder and landing layouts that turn the stair in less floor space
- The stairwell opening you’ll need, and where it clashes with joists, beams or headroom
- Whether the stair fits at all, before anything is ordered or cut
Site measuring
Not sure what to measure?
We can measure it too.
Our remote design service is available anywhere in the UK. If your project is in Kent or London, we can visit, take the measurements and produce the design for you. Measurement and design surveys are quoted separately.
Ask about a design survey →Who it’s for
Staircase expertise, wherever you are in the project
For homeowners, builders, carpenters and developers, including people planning loft conversions and extensions. Wherever you are in the UK, if you need a staircase designed, you can use this service whether or not you need us to supply or install it.
Your questions
Before we start
What information do I need to provide?
Send your floor-to-floor height, available staircase length and width, opening dimensions and floor thickness. Include your preferred staircase width, layout or direction if known, project type and any notes. Photographs, sketches and architect drawings help us understand the space. If information is missing, we’ll explain what we need.
What if I don’t know what staircase layout will fit?
That is what the service is for. Send us the space and measurements and we’ll work out an appropriate layout, explaining any constraints we identify.
What if the staircase won’t fit?
We’ll tell you, and show you what would make it work. That could be winders instead of a landing, moving the stair, or changing the size of the opening.
Can you design a staircase for my loft conversion?
Yes. Get in touch with whatever you have so far, whether that’s photos, rough measurements, a sketch or your architect’s plans. We’ll look at it and tell you exactly what else we need to work out whether a staircase will fit and where it should go.
Can you design winder staircases?
Yes. We can work out 3-winder and 6-winder arrangements, as well as straight staircases and layouts with landings.
Do you check staircase pitch and rise/going?
Yes. The pack includes rise, going and pitch calculations. Final suitability and compliance must still be confirmed before manufacture or installation.
Can you check headroom?
Relevant headroom checks can be included where we have enough information about the opening, floor thickness and surrounding structure. We’ll let you know if further details are needed.
Do you only work in Kent?
No. Remote design is available anywhere in the UK. You send us measurements, photos or drawings, and we send back the PDF drawing pack. Site measuring visits are available in Kent and London.
Can you visit and measure the property?
Yes, for projects in Kent and London. Detailed measurement and design surveys are quoted separately; they are different from our free supply and installation quotation surveys.
Can I use the drawings with another staircase company?
Yes. The drawing pack is yours to take to your preferred builder, carpenter or staircase manufacturer. There is no requirement to buy the staircase from us.
What happens if my measurements are wrong?
The design depends on the information supplied. Let us know about any correction as soon as possible. All dimensions and site conditions must be checked before manufacture, ordering materials or installation.
Are revisions included?
One reasonable revision is included. If your project changes substantially or you need further revisions, we’ll discuss any additional work and cost before proceeding.
Can Axton’s Staircases manufacture or install the staircase afterwards?
You can ask us for a separate supply or installation quote. Installation depends on the project and our service area; there is no obligation to use us.
Let’s work it out
Need a staircase designed?
Send us your project information and we’ll work out the staircase.
Start Your DesignUse our contact form to tell us you’d like the £150 + VAT staircase design service. We’ll confirm the details and the information needed to get started.
Have drawings or photographs ready?
Our contact form takes your initial enquiry. Send photographs, sketches and PDF drawings by email to [email protected], with your name and project details.
Please confirm that the information supplied is accurate to the best of your knowledge.
Measurements and final checks
Designs are produced using the dimensions, photographs, drawings and other information supplied by the customer. Axton’s Staircases cannot accept responsibility for discrepancies resulting from inaccurate, incomplete or incorrectly supplied information. All dimensions and site conditions must be checked and confirmed before manufacture, ordering materials or installation.
Designs are intended as staircase layout and dimensional guidance. Final suitability and compliance should be confirmed before manufacture or installation. Building Control approval remains separate where required.
